- Hinge Type: 3D Concelaed Door Hinge.
- *Load Capacity:50Kg (x2 Hinges), 70Kg (x3 Hinges), 80Kg (x4 Hinges).
- Pack Contains: 1 Hinge. (Order Correct Quantity depending on door loading)
- Warrenty: 10 years mechanical guarantee.
- Sizes (mm): Refer to Technical Diagram for each product option. Allow tolerance of up to 2%.
- Finishes: 7 Different Finishes Available.
- Profile: Radius
- Suitability: 35mm Minimum Thickness Doors, Wood, Aluminium, Steel.
- Fire Rated: Suitable for 30 Minute Fire Doors.
- Depth 21 mm.
- Suitable for domestic, commercial & industrial use.
*Based on standard door dimensions 2100x1000mm. View 3D Concelaed Hinge Ceam 1230 - Technical Data for further details.
Good to know (Key to symbols)
Ceam 1230 3D Adjustable Concealed Door Hinge
A concealed medium duty hinge for unrebated, flush faced quality timber doors. The ceam 1230 comes with removable cover plates to conceal the adjustment screws. Durable, versatile, strong and sturdy, substantial door hinges from ceam supplied by Carlisle Brass, one of the largest manufacturers of residential & commercial architectural iron mongery. The door hinges have a CE certification.
- Hinge Type: 3D Concelaed Door Hinge.
- *Load Capacity:50Kg (x2 Hinges), 70Kg (x3 Hinges), 80Kg (x4 Hinges).
- Pack Contains: 1 Hinge. (Order Correct Quantity depending on door loading)
- Warrenty: 10 years mechanical guarantee.
- Sizes (mm): Refer to Technical Diagram for each product option. Allow tolerance of up to 2%.
- Finishes: 7 Different Finishes Available.
- Profile: Radius
- Suitability: 35mm Minimum Thickness Doors, Wood, Aluminium, Steel.
- Fire Rated: Suitable for 30 Minute Fire Doors.
- Depth 21 mm.
- Suitable for domestic, commercial & industrial use.
*Based on standard door dimensions 2100x1000mm. View 3D Concelaed Hinge Ceam 1230 - Technical Data for further details.
Pack Contains:
- x1 door hinge. [See below ceam concelaed hinge selector chart to order correct quantity depending on load capacity].
- Instructions for installation [This product should only be fitted by a qualified installer].
Note: Fixing Screws not included and will need to be purchased seperately.
Accessories:
Product Technical Data:
- Further Technical information can be found under3D Concelaed Hinge Ceam 1230 - Technical Data
Other 3D Concelaed Door Hinges from CEAM:
CEAM CONCEALED HINGE SELECTOR CHART | |||||||||
Code | Dimensions (mm) | Mortice Depth (mm) | Min. Door Width (mm) | Max. Distance From Leading (mm) | Range of reversibility when fitted in centre of door (mm) | Load Capacity 2 Hinges (Kg) | Load Capacity 3 Hinges (Kg) | Load Capacity 4 Hinges (Kg) | Suitable for Fire Doors |
1129 | 100 x 22 x 18 | 18 | 28 | 4.5 | 28 - 31 | 25 | 30 | 44 | No |
1130 | 130 x 24 x 21 | 21 | 30 | 4.5 | 30 - 33 | 40 | 60 | 70 | Yes |
1131 | 160 x 32 x 29 | 29 | 38 | 7 | 38 - 46 | 80 | 120 | 140 | Yes |
1230 | 130 x 30 x 21 | 21 | 35 | 7.5 | 35 - 45 | 50 | 70 | 80 | Yes |

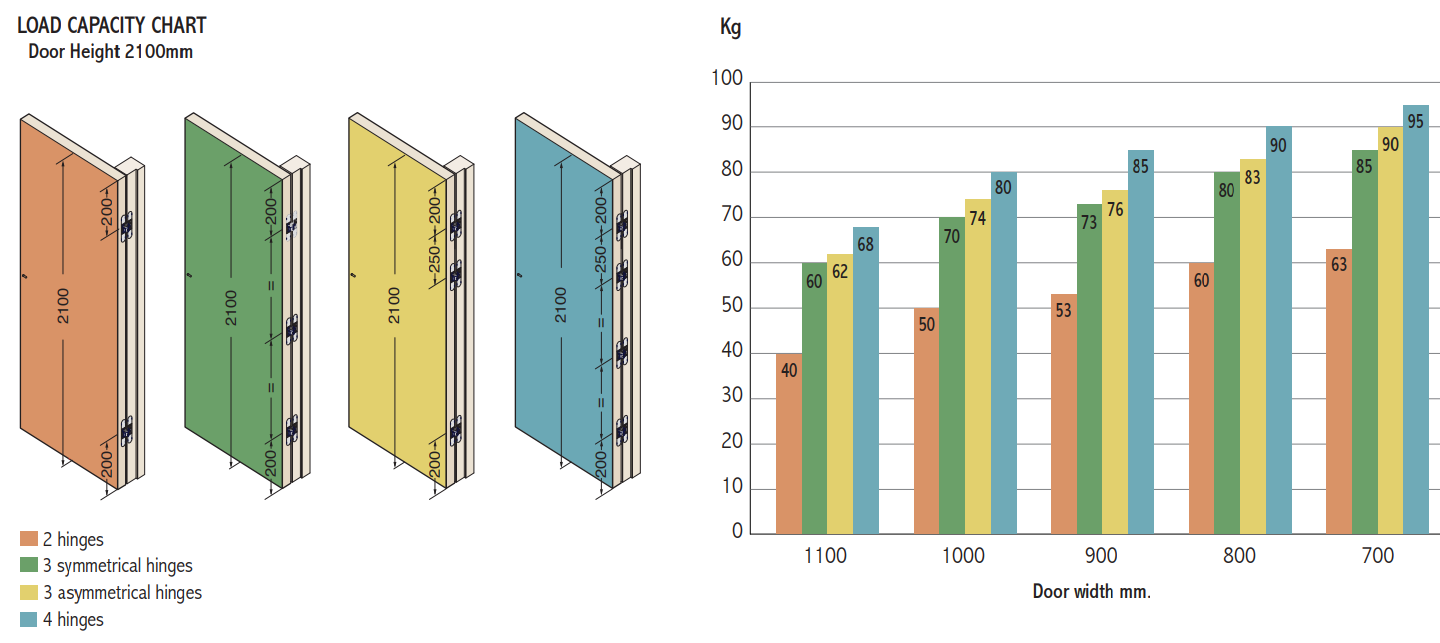

Ceam 1230 Concelaed Door Hinges Load Capacity Chart:
Important Information: Images on this website site are for illustration purposes only. Finish or colour of this product may not match exactly with products from a different brand even though the name of the finish or colour being similar. Product images on your device may not represent the actual size, colour or finish of the physical product due to the various setting options on your visual display. Regular cleaning and maintenance is required . Although we try and make sure the product information is accurate, we cannot guarantee 100% accuracy as our systems cannot be 100% reliable, hence if in any doubt, please contact us so we can assist you further and resolve any queries in the quickest way possible. We recommend that you contact us if you require any further information not mentioned on the website.
Sub Categories | Door Hinges |
---|---|
Condition | New |
GTIN | CI001230 |
Authorised Seller | Yes |
Country of Manufacture | Italy |
Country of Design | Italy |
Brand | Ceam |
Manufacturer's Guarantee | 10 Years |
Available to View & Touch | Yes |
Manufacturing | Machine |
Door Hinge Type | 3D Concealed Hinges |
Profile | Radius |
Size | 3D Concealed Hinge Size (mm), 130 x 30 x 21 |
Material | Zinc Alloy |
Fire Rating | FD30 - 30 Minute fire doors |
Handing | Universal |
Style | Contemporary |
Self Closing | No |
Manual / Electric | Manual |
Mounting | insert |
Installation | Screw Fixing |
Usage | Commercial, Domestic, Education Facility, Hospitality, Health Care, Industrial |
Environment | Internal |
Fire Suitability | Grade 1: Suitable |
CE Mark | Yes |
Pack Size | 1 Piece |
Delivery Option | Click and Collect, Local Area Only, United Kingdom |
Made to Order | No |
Returnable / Cancel | Yes |
Return Period | 14 Days |
